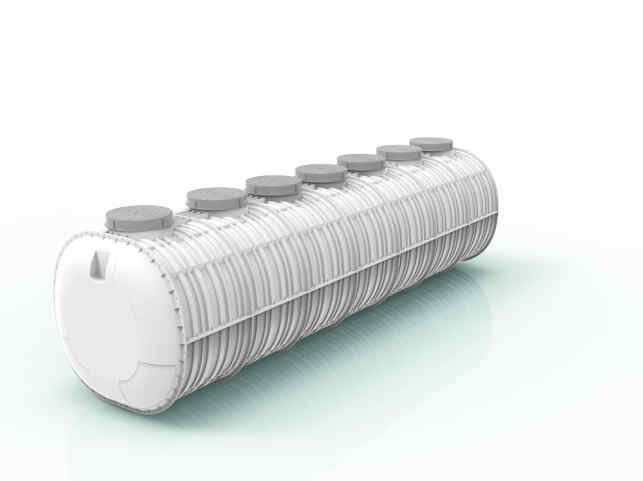

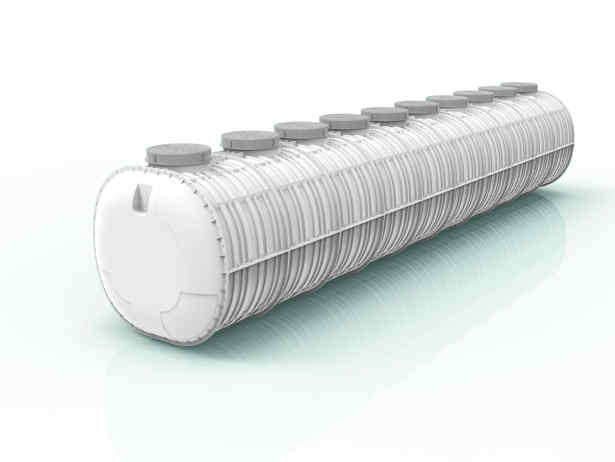

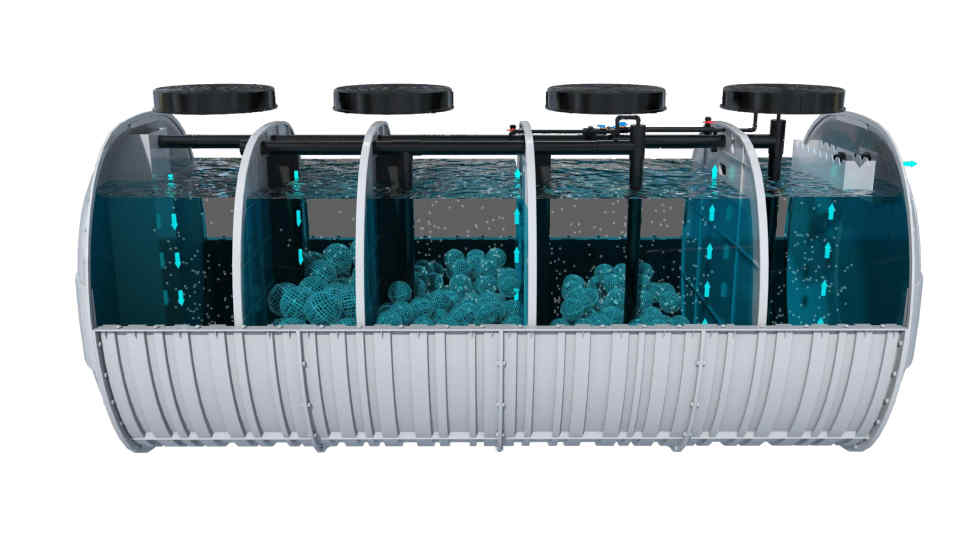

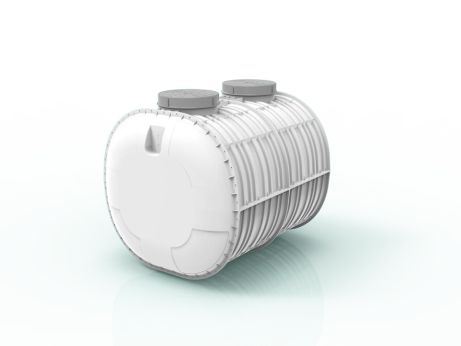

Johkasou is a compact decentralized wastewater treatment system. Ideal for rural areas, resorts, and sites without sewer access.
Product Introduction

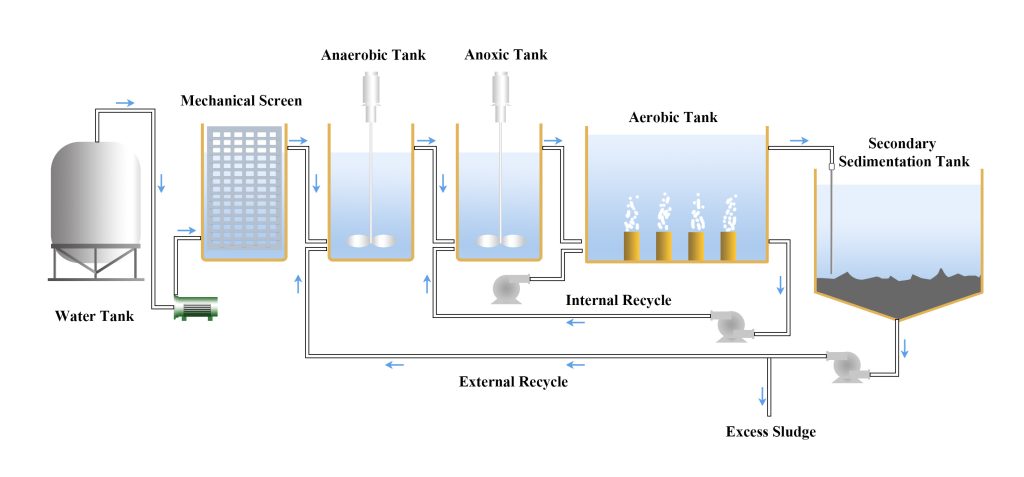

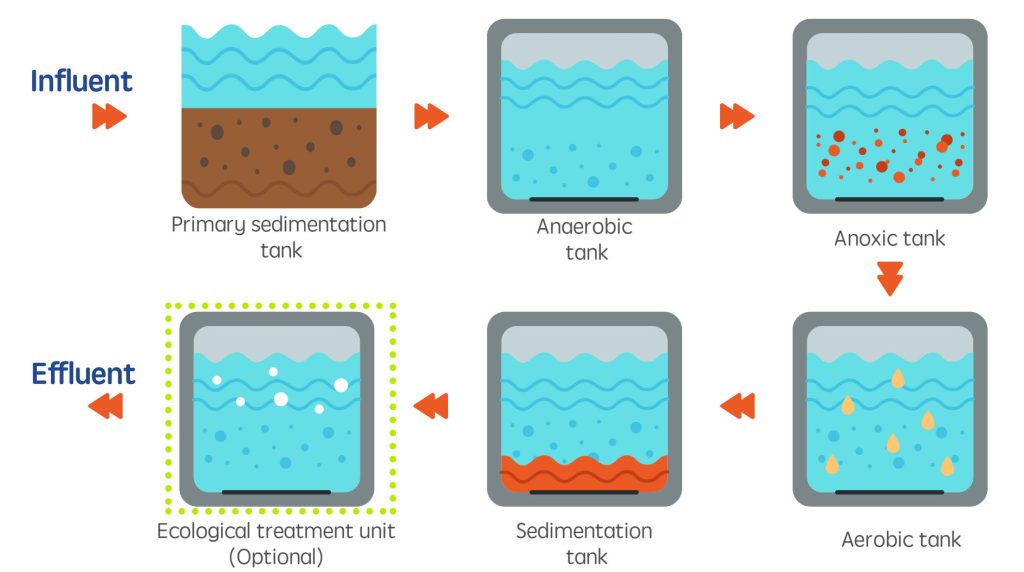

After entering the plant, wastewater does not go directly into the AAO biochemical tank but follows a complete treatment chain.
The core process is as follows:There are two key return systems that many people easily confuse:
Internal Return: Returns nitrified liquid from the end of the aerobic tank to the front of the anoxic tank. Its core function is to provide raw material (nitrate nitrogen) for denitrification – the key to nitrogen removal.
External Return: Returns settled sludge from the bottom of the secondary clarifier to the front of the anaerobic tank. Its core function is to maintain the microbial concentration in the biochemical tank and ensure stable sludge volume in the system.
Product Advantages

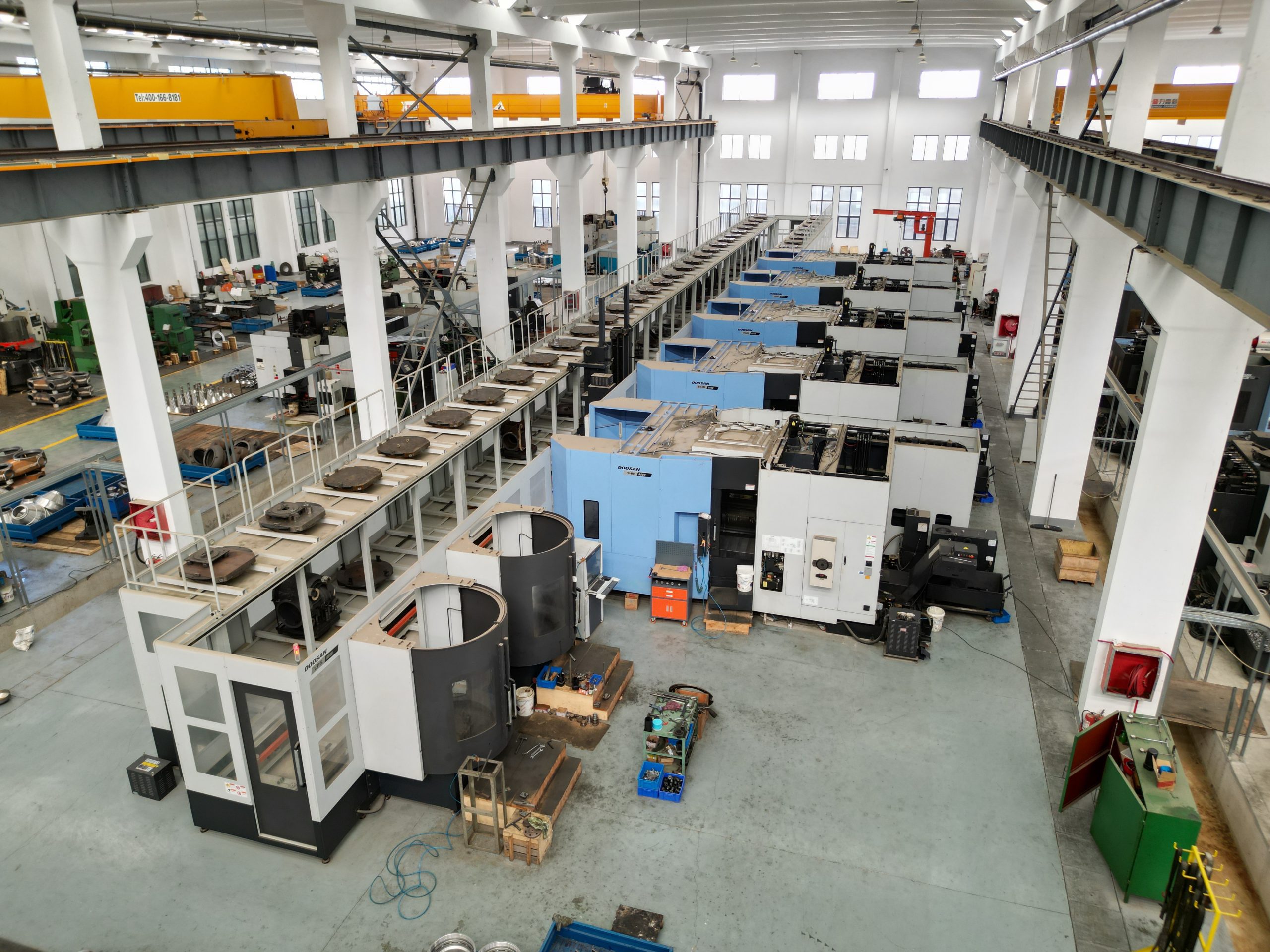

1.Advanced Manufacturing for Reliable Quality
- Mass production with standardized workflows → Consistent quality & fast delivery.
- 2.3,000 units/year per line → Scalable &on-time supply.
- 3.Rigorous quality control → Stable and reliable performance.
3.Innovative Design for Maximum Efficiency
- Patented corrugated reinforcement →Stronger structure, withstands frozen soil.
- Optimized water distribution → No dead zones, no short-circuiting.
- Large effective treatment volume → Higher sewage processing efficiency.
2.Superior Materials for Long-Term Durability
- High-strength DSM resin (Netherlands) →Exceptional structural integrity.
- Zero internal metal components →Corrosion-free, extended lifespan.
- 30-year underground performance →Minimal maintenance, long-term cost savings.
4.High-Performance Sewage Treatment Technology
- Patented biofilm filler (gel sponge + high efficiency bacteria）→ Maximized microbial growth.
- Enhanced microbial attachment → Improved biological treatment performance.
- Lower operational costs → Less sludge, more sustainable treatment.
Application Field
1.Restaurant & Kitchen Wastewater
Pre-treatment and biological treatment of oily kitchen wastewater
3.Drinking Water Source Protection Areas
Villages or facilities located upstream of drinking water sources.
2.Rural Domestic Wastewater
Suitable for natural villages and rural communities without access to centralized sewer networks.
4.Hotels & Guesthouses
Domestic sewage treatment for hotels; treated water can be reused for toilet flushing.
Technical Parameter
| Modle | Capacity(m³/h) | Dimension(mm) | Manholes(mm) | Power(W) | Voltage(V) | Material |
| ZL-PT-2 | 2 | 2150*1150*1650 | φ630*2 | 55 | 220 | SMC |
| ZL-PT-5 | 5 | 2420*2010*2000 | φ630*2 | 110 | 220 | SMC |
| ZL-PT-8 | 8 | 3420*2010*2000 | φ630*3 | 110 | 220 | SMC |
| ZL-PT-10 | 10 | 4420*2010*2000 | φ630*4 | 170 | 220 | SMC |
| ZL-PT-15 | 15 | 5420*2010*2000 | φ630*5 | 220 | 220 | SMC |
| ZL-PT-20 | 20 | 7420*2010*2000 | φ630*6 | 350 | 220 | SMC |
| ZL-PT-25 | 25 | 8420*2010*2000 | φ630*6 | 470 | 220 | SMC |
| ZL-PT-30 | 30 | 10420*2010*2000 | φ630*6 | 470 | 220 | SMC |
