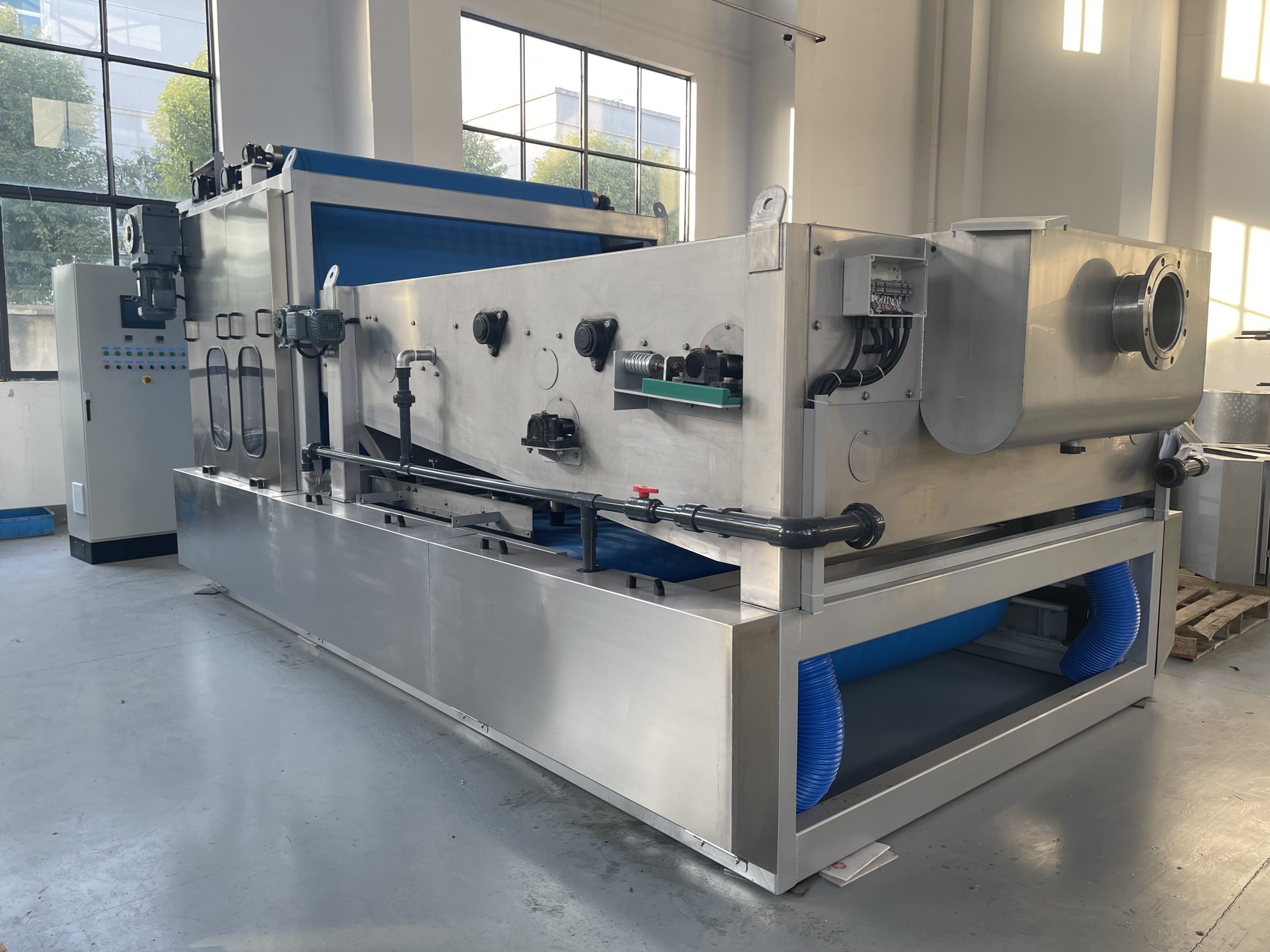

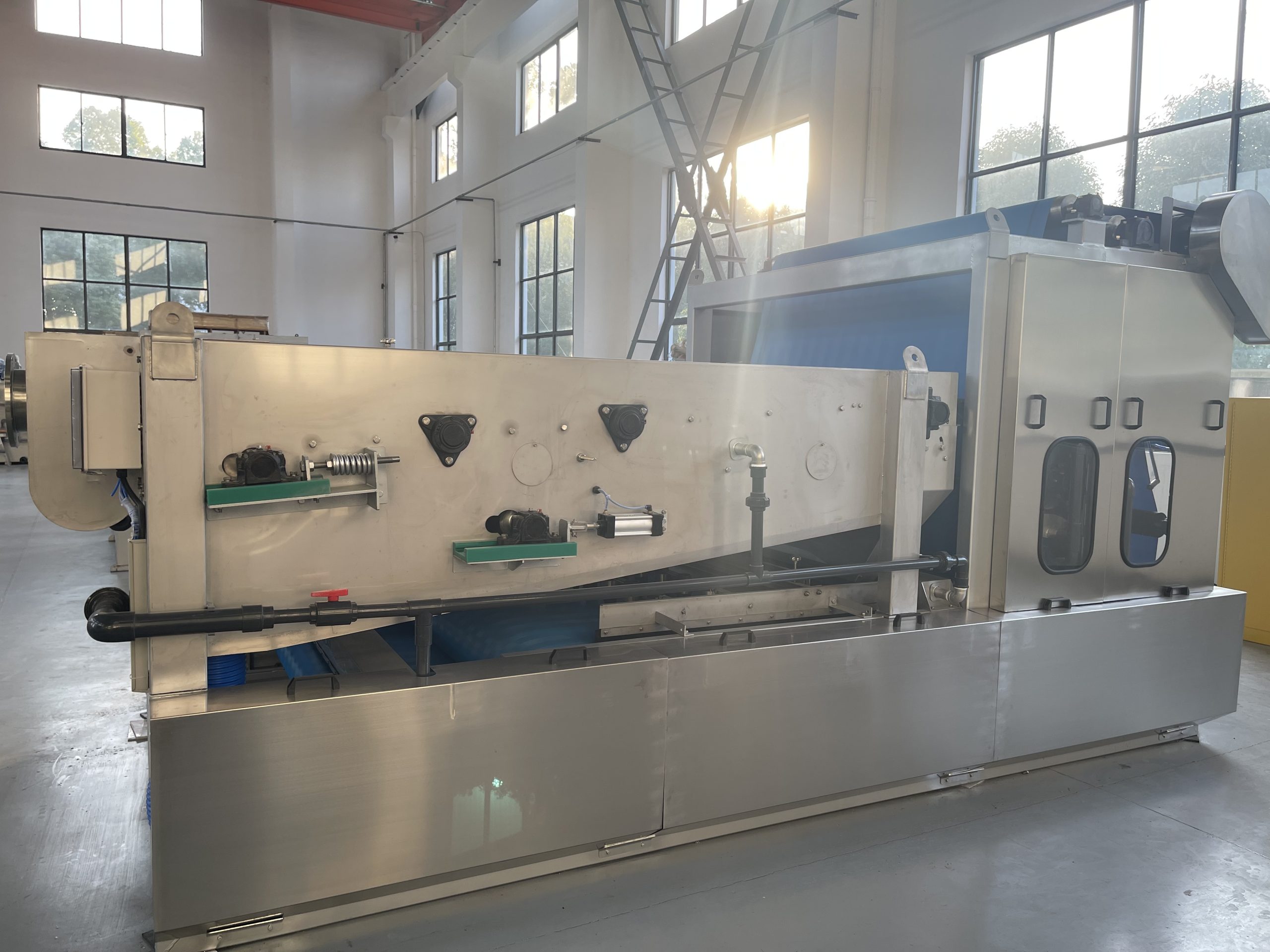

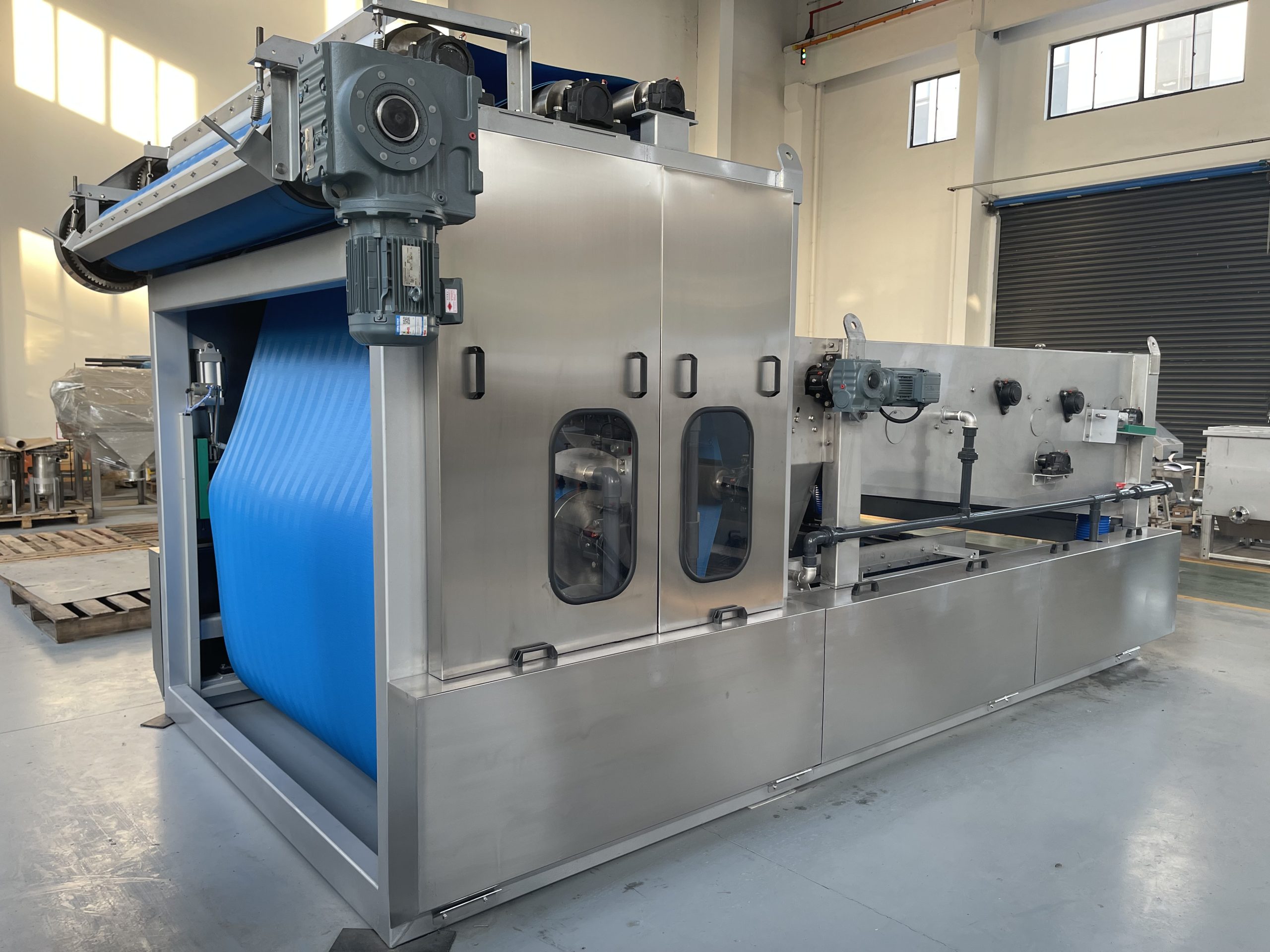

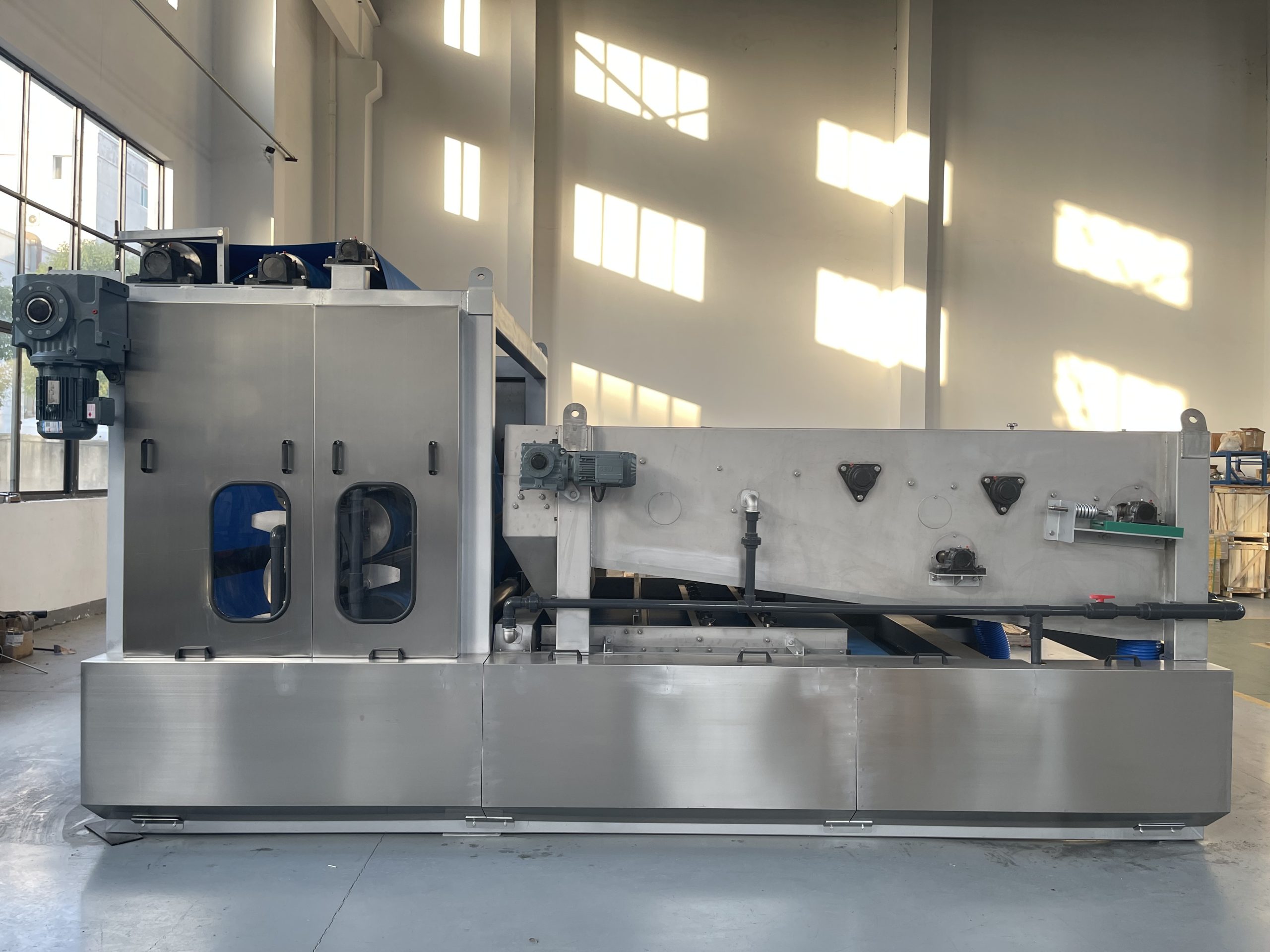

TBFP type Belt Filter Press with thickener is ideal for municipal biological sludge. Choose 8, 10 or 13 press rolls; the 13-roll high-pressure model achieves <80% moisture content. Reliable and efficient.
Product Introduction

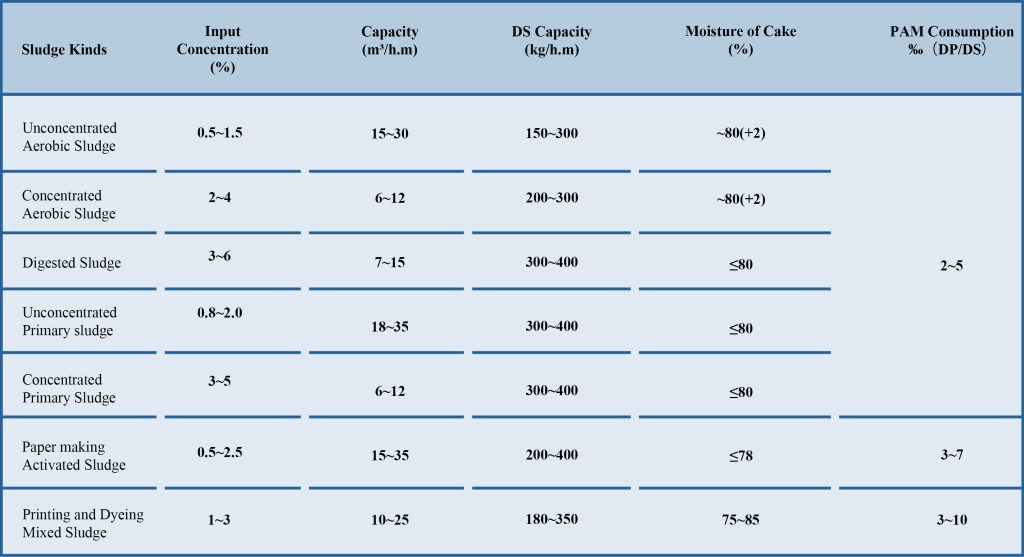

Most of the time, traditional models can meet the general requirements.The treatment effect is shown in the following table.
In order to ensure that the shipped sludge from the urban sewage treatment plant meets the discharge standard by GB18918, we designed a high-pressure dewatering model with more pressing rolls and higher pressing force, which can make the refractory sludge reach the standard by dewatering at one time.By adding multiple chemical agents, obtaining lower moisture of cake through primary dewatering,which saves more energy consumption for subsequent disposa.

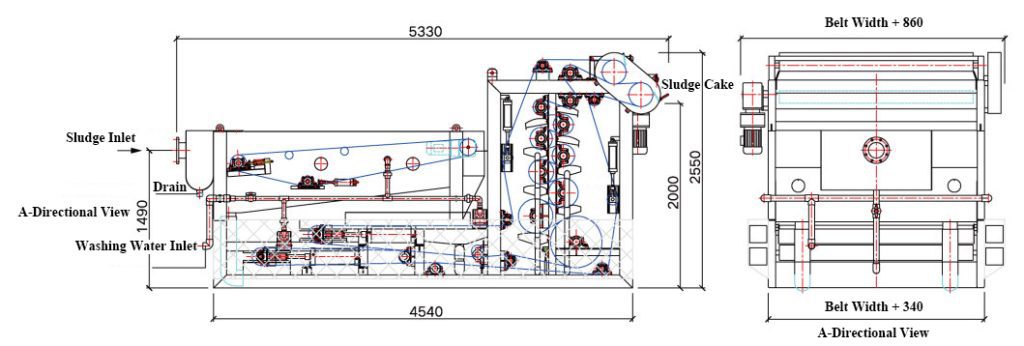

Architecture
Product Advantages
- The belt thickener has better adaptability to biological sludge, and the suitable sludge concentration range is wider
- The filter press section has optimized design of pre-press and press dewatering section, which is more suitable for the filtration process of biological sludge.
- The optimized machine has a greater pressing force.
- The belt thickener is combined with the belt filter press with the vertical press roller structure. The over all operation height is low and the maintenance is convenient.
Application Field

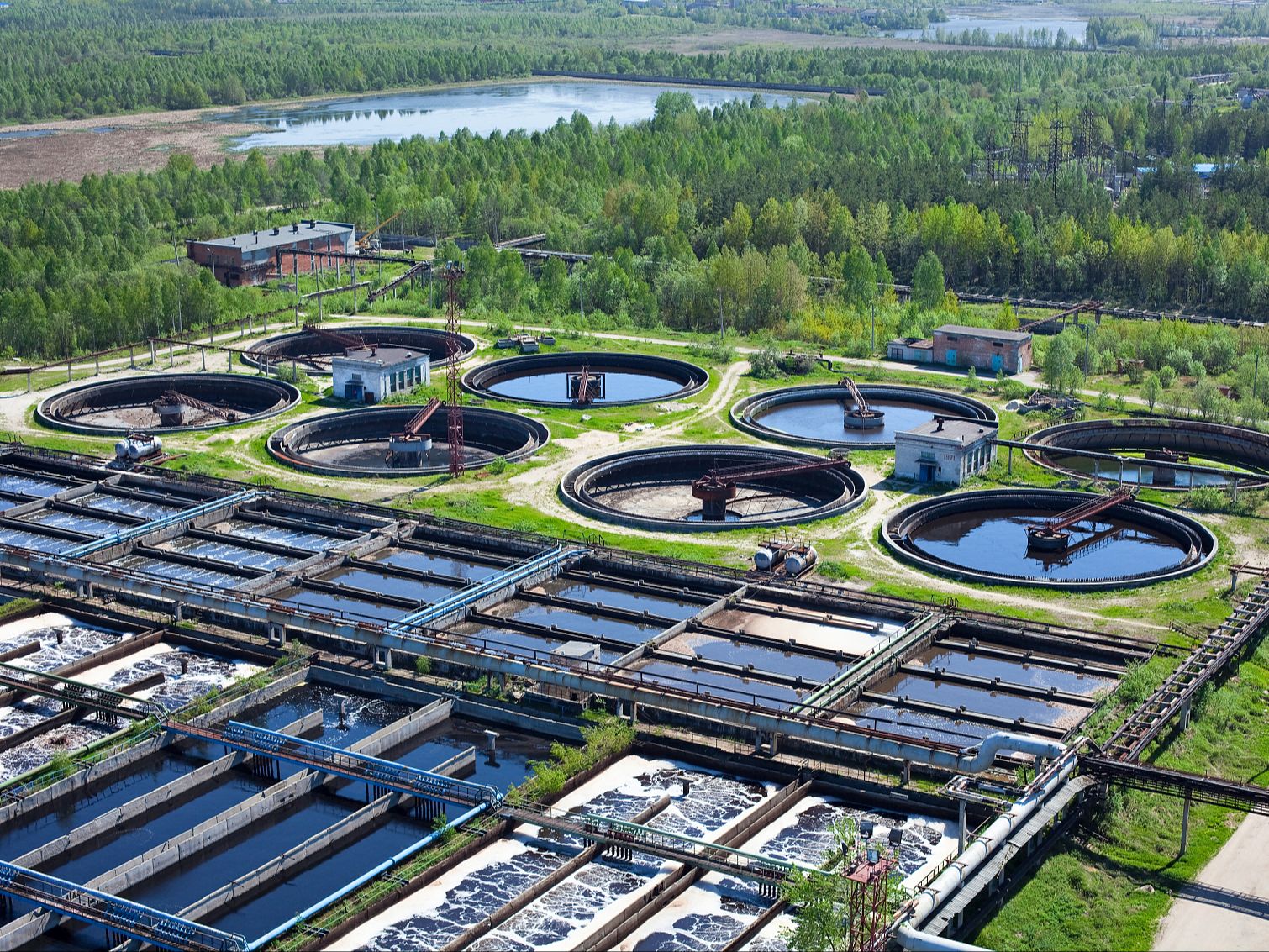

1.Municipal Wastewater Treatment Plants
-
Typical sludge: Primary sludge, surplus activated sludge, digested sludge (moisture content 98%–99.5%).
-
Typical applications: New plants or upgrades in space‑limited sites; reduces sludge transport costs.
3.Paper & Pulp Mills
-
Typical sludge: Primary sludge (short fibers, fillers), deinking sludge, biological sludge, white water recovery sludge.
-
Typical applications: Recycled paper mills, chemical pulp mills, deinking lines, paper machine white water systems.
5.Textile & Dyeing Industry
-
Typical sludge: Physicochemical sludge (Fe/Al hydroxides) containing dyes, sizing agents, surfactants, and waste activated sludge.
-
Typical applications: Cotton dyeing wastewater, denim washing effluent, printing paste recovery sludge.
2. Food Processing Industry
-
Typical sludge: Organic sludge from dairies, breweries, beverage plants, starch processing, slaughterhouses, vegetable oil mills – containing oil, protein, fibers or pectin.
-
Typical applications: Whey protein recovery, brewer’s spent grain dewatering, fruit pomace treatment.
4. Agriculture & Livestock Farms
-
Typical sludge: Manure slurry from dairy, swine, poultry farms, and biogas digester residues.
-
Typical applications: Large‑scale farm manure treatment, biogas plant digestate dewatering, vegetable market waste liquid treatment.
6. Mining & Mineral Processing
-
Typical sludge: Thickener underflow, coal slurry, tailings water, clay‑mineral wastewater (e.g., bentonite).
-
Typical applications: Coal slurry dewatering, non‑ferrous metal tailings dry stacking, kaolin slurry dewatering.
Technical Parameter
| Model | TBFP-1000 | TBFP-1500 | TBFP-2000 | TBFP-2500 |
| Belt Width(mm) | 1000 | 1500 | 2000 | 2500 |
| Belt Speed(m/min) | Thickener:4~20,Press:1.3~6.5 | |||
| Driving Power(kW) | 0.75+1.1 | 0.75+1.5 | 0.75+2.2 | 1.1+2.2 |
| Washing Water Capacity(m3/h) | 8-12 | 12-18 | 16-24 | 20-30 |
| Washing Pressure(Mpa) | ~0.6 | |||
| Net Weight(kg) | 4500 | 5000 | 6200 | 7500 |
| Operating Weight(kg) | 4800 | 5500 | 6800 | 8200 |
| Overall Dimension(L*B*H(mm)) | 5330*1860*2550 | 5330*2360*2550 | 5330*2860*2550 | 5330*3360*2550 |
