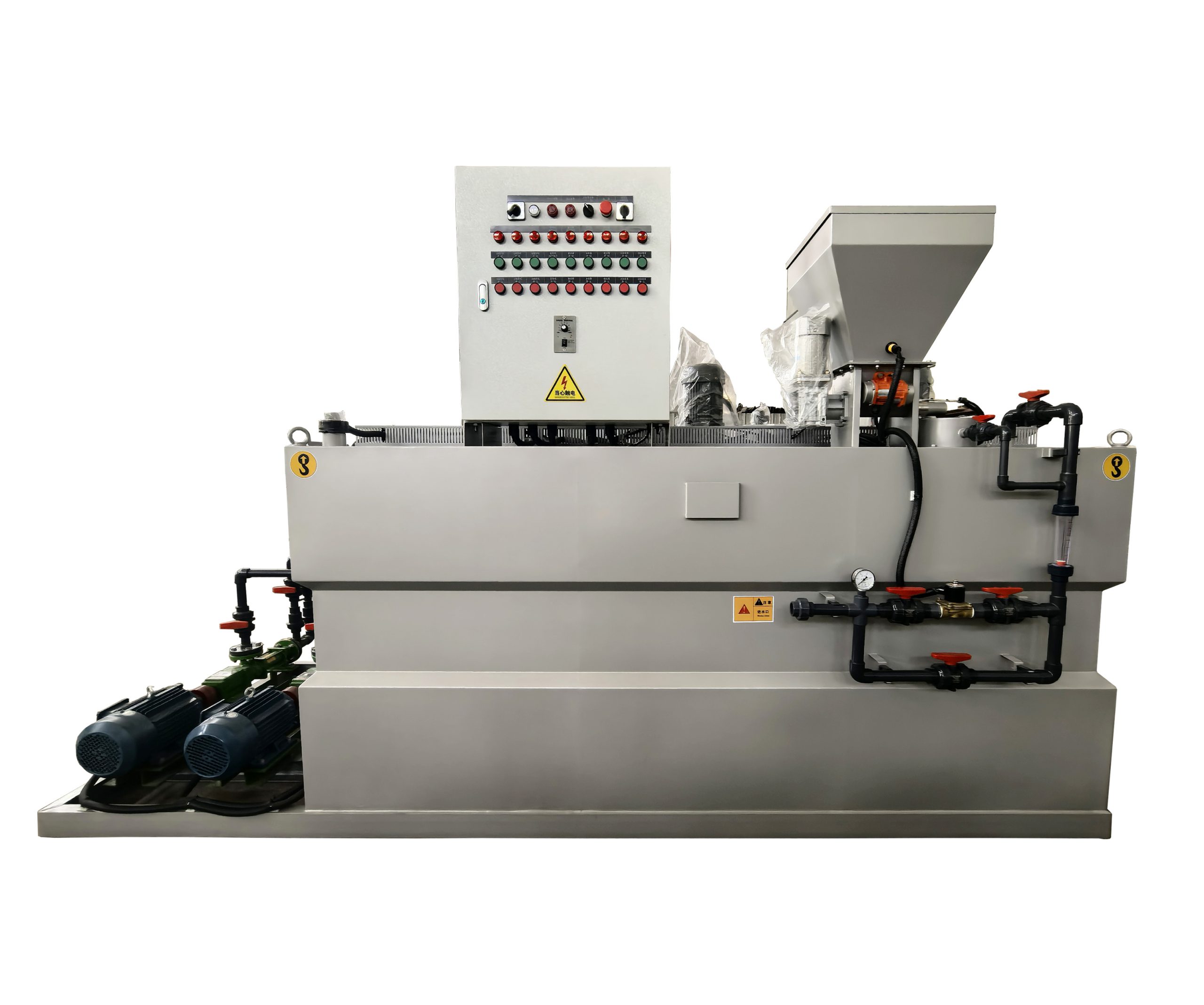

The automatic dosing device is widely used in auxiliary equipment for municipal water treatment and sewage sludge treatment.
Product Introduction
- High-Speed Dispersion

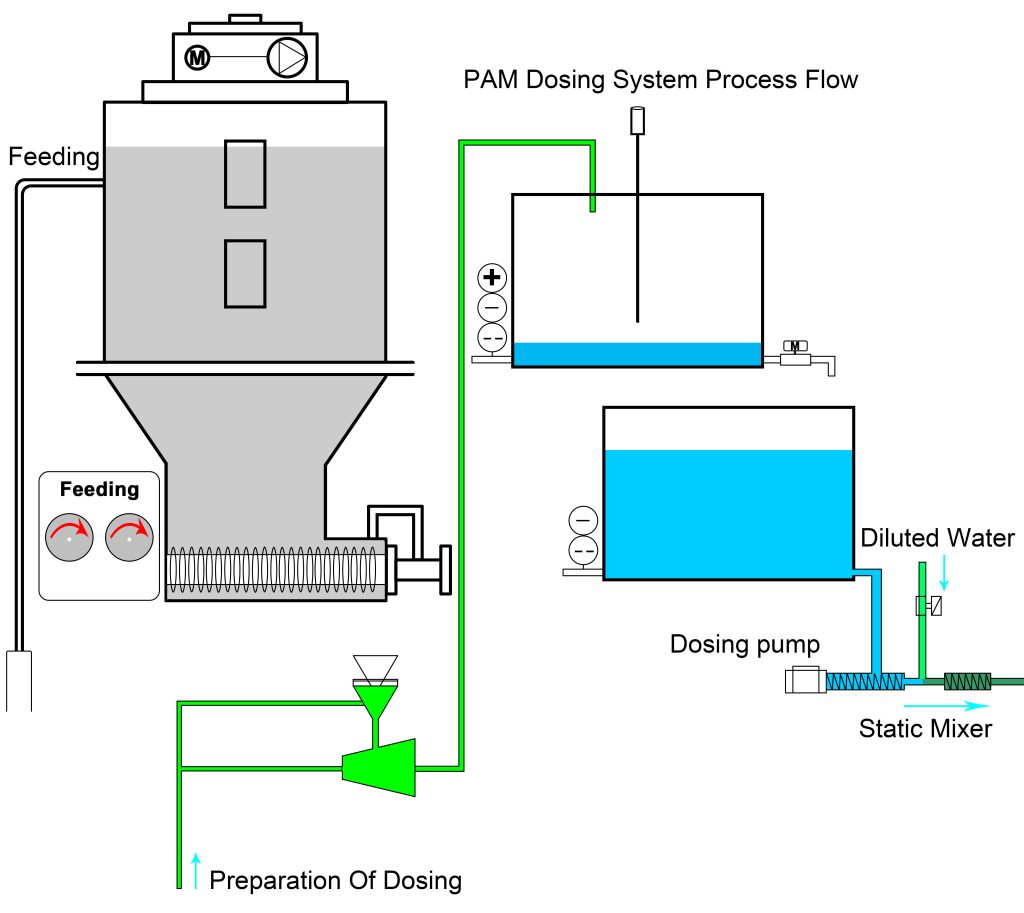

The jet mixer first accelerates water flow to hydraulically break down chemicals (PAC, PAM, etc.) into fine particles. This process increases surface area by 300% compared to traditional mixing. - Three-Stage Solution Preparation
Next, the solution flows through three tanks:- Preparation Tank: Dissolves 90% of chemicals within 2 minutes (vs. 10 minutes in conventional systems).
- Curing Tank: Uses gravity separation to remove undissolved residues automatically.
- Dosing Tank: A slow-speed mixer finally ensures uniform concentration (±2% variance).
Application Field
1. Municipal and Industrial Wastewater Treatment
- Application scenarios:
Add coagulants (such as PAC, PAM) to enhance sludge settling.
Add disinfectants (sodium hypochlorite, ozone) to kill pathogens.
2.Petrochemical Industry
- Application scenarios:
Oilfield reinjection water: Add corrosion inhibitors and scale inhibitors to prevent pipeline corrosion and scaling.
Refining process: adding demulsifier to separate oil-water mixture.
3.Food and Pharmaceutical Industry
- Application scenarios:
Food processing: Acid/alkali cleaning agents are added to the CIP cleaning system.
Pharmaceutical pure water: Add sodium bisulfite to remove residual chlorine.
4.Paper and Textile Industry
- Application scenarios:
Paper making process: adding bleaching agents (such as chlorine dioxide) and defoamers.
Textile printing and dyeing: adding oxidants (such as hydrogen peroxide) for decolorization.
Technical Parameter
| Type | Capacity(L/H) | Size(mm) | Dry Power Machine Power(KW) | Mixer Power(KW) | Inlet Size | Outlet Size |
| ZLY-500 | 500 | 900*1500*1650 | 0.18 | 0.55*2 | DN20 | DN20 |
| ZLY-1000 | 1000 | 1000*1625*1750 | 0.18 | 0.55*2 | DN20 | DN20 |
| ZLY-1500 | 1500 | 1000*2440*1800 | 0.18 | 0.55*2 | DN20 | DN20 |
| ZLY-2000 | 2000 | 1220*2440*1800 | 0.18 | 0.55*2 | DN20 | DN20 |
| ZLY-3000 | 3000 | 1220*3200*2000 | 0.18 | 0.55*2 | DN20 | DN20 |
Project Case

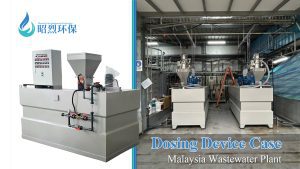

Dosing Device Shipped to Malaysia Now in Operation
Two dosing device to malaysia in last october,now fully […]
